Take a GitOps approach to install HiveMQ with Terraform in the cloud

Written by Matthias Hofschen

Category: HiveMQ Clustering AWS Third Party Terraform GitOps

Published: June 21, 2020


HiveMQ is the perfect solution to provide highly reliable and scalable MQTT communications for millions of devices. Let’s take a look at how to install a HiveMQ Cluster on AWS using Terraform.

It is really simple to manually install HiveMQ as a service on one machine. You can do a single-machine installation within a few minutes. However, if you want to deploy a cluster of machines for high availability and reliability, change the standard HiveMQ installation, and perhaps configure MQTT communication to use TLS encryption, manual installation becomes less attractive. On top of that, you might want to deploy and configure some of the great extensions that are available from the HiveMQ Marketplace. Doing this sort of installation manually would take a lot of time and doesn’t provide an automatic restart of the service if a machine dies. The solution: we need to automate the installation process.

Terraform is one option to write infrastructure code that allows for the reproducible installation of machines and services such as HiveMQ. Infrastructure as code together with continuous integration/continuous deployment (CI/CD) pipelines and version control systems such as Git has many benefits:

  • Full history of changes
  • Automatic installation procedures
  • Reproducible environments for development, staging, and production

The practise of working with these components across teams of developers and operation engineers is often referred to as GitOps.

Terraform encourages a declarative coding style. A plan of the current infrastructure state is rendered and stored on a configurable backend. For example, AWS S3 or, in our example, on the local filesystem. Subsequent runs of Terraform compare the existing state with the desired state and apply the necessary changes to the infrastructure.

Let’s take a closer look at how to install a two-node HiveMQ cluster on AWS. One of the core elements to use is the AWS Autoscaling Group. This feature allows the HiveMQ cluster to be elastically scaled according to load. The Autoscaling Group can also be configured to automatically restart crashed nodes and provide a higher reliability to the cluster. As an Amazon Machine Image (AMI), we use the freely available HiveMQ AMI from the AWS marketplace. This AMI, based on Centos, provides a solid foundation for the cluster and is preinstalled with HiveMQ and a Java 11 runtime. Keep in mind, without a HiveMQ license the number of concurrent connections is limited.

Overview:

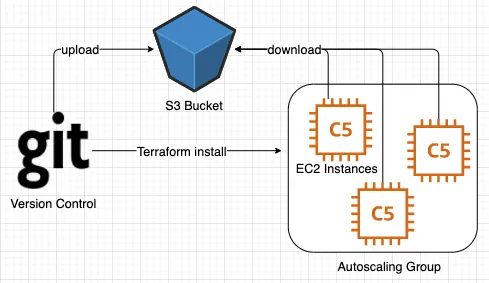

What does the high-level overview of the installation look like? Here is a simple graphic to show you what I have in mind:

Installation diagram

Configuration files and installation artifacts are uploaded from Git (for now manually) to an AWS S3 bucket. Each HiveMQ cluster node downloads the configuration files and artifacts during its installation. The AWS S3 bucket acts as a point of transfer between version control and service installation.

Once the configuration files are in place, we are ready to invoke the Terraform code and start the installation. After a few minutes, the HiveMQ cluster nodes start and we can obtain the public address for one of the HiveMQ nodes from the AWS EC2 web console. With the address and port 8080, direct your browser to the HiveMQ Control Center.

Let’s dive into the nitty-gritty details:

Prerequisites:

  • If you have not yet installed Terraform on your computer, head over to the Hashicorp website and follow the installation guide.

  • Have your AWS account ready, and make sure to create an access token that authenticates the code against your AWS account. Here is the guide from AWS.

  • On the AWS S3 web console create the S3 Bucket “hivemq-install” with a folder named “hivemq-artifacts”.

  • Download the HiveMQ S3-Cluster-Discovery extension here and upload the zip file to the S3 Bucket’s “hivemq-artifacts” folder.

  • Create two configuration files to customize HiveMQ and upload them to the same “hivemq-artifacts” folder.

  • Upload the first file with the name “config.xml”.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30

    <?xml version="1.0"?>
    <hivemq>
        <listeners>
            <tcp-listener>
                <port>1883</port>
                <bind-address>${PRIVATE_IP}</bind-address>
                <proxy-protocol>true</proxy-protocol>
            </tcp-listener>
        </listeners>
        <control-center>
            <listeners>
                <http>
                    <port>8080</port>
                    <bind-address>${PRIVATE_IP}</bind-address>
                </http>
            </listeners>
        </control-center>
        <cluster>
            <enabled>true</enabled>
            <transport>
                <tcp>
                    <bind-address>${PRIVATE_IP}</bind-address>
                    <bind-port>7800</bind-port>
                </tcp>
            </transport>
            <discovery>
                <extension/>
            </discovery>
        </cluster>
    </hivemq>

  • Upload the second file with the name “s3discovery.properties”.

    1
    2
    3
    4
    5
    6
    7
    8
    9

    # S3-discovery
    credentials-type:instance_profile_credentials

    s3-bucket-name: ${BUCKET}
    s3-bucket-region: ${REGION}
    file-prefix: hivemq/cluster/nodes/

    file-expiration:360   # Expiration in seconds
    update-interval:180   # Interval in seconds

Infrastructure Code:

  • Now, go ahead and create a local “terraform” folder on your computer for the infrastructure code files.

  • In the “terraform” folder, create a “variables.tf” file and make sure to replace the two placeholders with your access and secret key from AWS. Find out more about authentication with terraform here .

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15

    variable "access_key" {
      default = "<PROVIDE YOUR ACCESS KEY>"
    }
    variable "secret_key" {
      default = "<PROVIDE YOUR SECRET KEY>"
    }
    variable "region" {
      default = "eu-west-1"
    }
    variable "s3_bucket" {
      default = "hivemq-install"
    }
    variable "instance_type" {
      default = "t2.medium"
    }

  • In the “terraform” folder, create a “main.tf” file.

      1
      2
      3
      4
      5
      6
      7
      8
      9
     10
     11
     12
     13
     14
     15
     16
     17
     18
     19
     20
     21
     22
     23
     24
     25
     26
     27
     28
     29
     30
     31
     32
     33
     34
     35
     36
     37
     38
     39
     40
     41
     42
     43
     44
     45
     46
     47
     48
     49
     50
     51
     52
     53
     54
     55
     56
     57
     58
     59
     60
     61
     62
     63
     64
     65
     66
     67
     68
     69
     70
     71
     72
     73
     74
     75
     76
     77
     78
     79
     80
     81
     82
     83
     84
     85
     86
     87
     88
     89
     90
     91
     92
     93
     94
     95
     96
     97
     98
     99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129

    provider "aws" {
      region     = var.region
      access_key = var.access_key
      secret_key = var.secret_key
    }

    resource "aws_autoscaling_group" "asg" {
      name_prefix        = "hivemq-asg-"
      availability_zones = ["eu-west-1a"]
      desired_capacity   = 2
      max_size           = 2
      min_size           = 1

      launch_template {
        id      = aws_launch_template.template.id
        version = "$Latest"
      }
    }

    resource "aws_launch_template" "template" {
      name_prefix           = "hivemq-template-"
      instance_type         = var.instance_type
      image_id              = data.aws_ami.hivemq-ami.id
      user_data             = data.template_cloudinit_config.config.rendered

      vpc_security_group_ids = [ aws_security_group.sec-group.id ]
      iam_instance_profile { arn = aws_iam_instance_profile.profile.arn }
    }

    data "template_cloudinit_config" "config" {
      base64_encode = true
      gzip = true
      part {
        content_type  = "text/x-shellscript"
        content       = templatefile("hivemq-install.sh", {
          s3_bucket = var.s3_bucket
          region    = var.region
        })
      }
    }

    data "aws_ami" "hivemq-ami" {
      most_recent = true
      owners = ["474125479812"]
      filter {
        name = "name"
        values = ["HiveMQ 4.3.3"]
      }
    }

    resource "aws_security_group" "sec-group" {
      name_prefix   = "hivemq-sec-group-"

      ingress {
        description = "ssh access"
        from_port   = 22
        to_port     = 22
        protocol    = "tcp"
        cidr_blocks = ["0.0.0.0/0"]
      }

      ingress {
        description = "mqtt access"
        from_port   = 1883
        to_port     = 1883
        protocol    = "tcp"
        cidr_blocks = ["0.0.0.0/0"]
      }

      ingress {
        description = "internal"
        from_port   = 7800
        to_port     = 7800
        protocol    = "tcp"
        cidr_blocks = ["172.31.0.0/16"] #make sure this is the correct cidr for your AWS VPC
      }

      ingress {
        description = "Control Center"
        from_port   = 8080
        to_port     = 8080
        protocol    = "tcp"
        cidr_blocks = ["0.0.0.0/0"]
      }

      egress {
        from_port   = 0
        to_port     = 0
        protocol    = "-1"
        cidr_blocks = ["0.0.0.0/0"]
      }
    }

    resource "aws_iam_instance_profile" "profile" {
      name_prefix   = "hivemq-iam-profile-"
      role          = aws_iam_role.s3_role.name
    }

    resource "aws_iam_role_policy_attachment" "instance_policy_attach" {
      role          = aws_iam_role.s3_role.name
      policy_arn    = aws_iam_policy.s3_policy.arn
    }

    resource "aws_iam_role" "s3_role" {
      name_prefix        = "hivemq-role-"
      path               = "/"
      assume_role_policy = <<ROLE
    {
      "Version": "2012-10-17",
      "Statement": [ {
        "Effect": "Allow",
        "Action": "sts:AssumeRole",
        "Principal": { "Service": "ec2.amazonaws.com" }, "Sid": "" } ]
    }
    ROLE
    }

    resource "aws_iam_policy" "s3_policy" {
      name_prefix           = "hivemq-s3-policy-"
      policy                = <<POLICY
    {
      "Version": "2012-10-17",
      "Statement": [ {
        "Effect": "Allow",
        "Action": [ "s3:GetObject", "s3:PutObject", "s3:DeleteObject", "s3:ListBucket" ],
        "Resource": [ "arn:aws:s3:::hivemq-install", "arn:aws:s3:::hivemq-install/*" ]}]
    }
    POLICY
    }

  • Finally, create a “hivemq-install.sh” file in the “terraform” folder.

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27

    #!/bin/bash
    set -ex

    systemctl stop hivemq
    wait

    yum -y update
    yum -y install awscli

    mkdir /opt/hivemq-artifacts
    aws s3 sync s3://${s3_bucket}/hivemq-artifacts/ /opt/hivemq-artifacts --region ${region}
    wait

    PRIVATE_IP=$(curl -sS http://169.254.169.254/latest/meta-data/local-ipv4) \
    envsubst < /opt/hivemq-artifacts/config.xml \
             > /opt/hivemq/conf/config.xml

    unzip /opt/hivemq-artifacts/hivemq-s3-cluster-discovery-extension-*.zip -d /opt/hivemq/extensions

    BUCKET="${s3_bucket}" \
    REGION="${region}" \
    envsubst < /opt/hivemq-artifacts/s3discovery.properties \
             > /opt/hivemq/extensions/hivemq-s3-cluster-discovery-extension/s3discovery.properties

    chown -R hivemq:hivemq /opt/hivemq/extensions
    chmod -R 770 /opt/hivemq/extensions
    systemctl start hivemq

Ready to go:

Now that all the required pieces are in place, start the installation:

  • Initialize the local “terraform” folder. From inside the folder execute the following command:
     terraform init
  • Use the following command to verify that the code is valid and create the terraform plan:
     terraform plan
  • The final step is to apply the code to AWS ( keep in mind that from now on AWS will charge your account for using resources ):
     terraform apply -auto-approve

Test your cluster:

  • Now, you can verify that your two-node cluster is actually running. From the AWS EC2 web console, get the public address of one of the HiveMQ nodes. This address will look something like the following: ec2-54-194-18-56.eu-west-1.compute.amazonaws.com
  • Direct your browser to “http://<address>:8080” and provide the HiveMQ Control Center login information. If everything went according to plan, you should see 2 nodes running in the upper right-hand corner of the display. (Find the login prompt here in the documentation).
  • Use the opensource HiveMQ CLI (Command Line Client) tool and test the MQTT connectivity to your cluster. For more information on the CLI client, see the documentation.
  • If the client connects successfully to the cluster, the connection appears on the dashboard.
  • Once you are done testing, do not forget to destroy the cluster. It’s easy to destroy your test cluster, simply use the following Terraform command:
     terraform destroy -auto-approve

Final notes:

I’ve kept the sample HiveMQ installation in this blog post as simple as possible. To create a secure production-ready installation for a real-world scenario you would add additional components. Here are some examples:

  • An AWS load balancer to front the autoscaling group and provide a unified access point for clients.
  • Cluster security for authentication, authorization and transport layer security (TLS). Take a look at these blog posts for more information.
  • Operational visibility with a monitoring extension such as the InfluxDB extension. Find out more in this blog post.
  • A CI/CD pipeline to provide automation.
  • The terraform configuration to provide a persistent state backend.
  • A larger AWS EC2 instance type such as “m5.xlarge” for production use cases.

How to make this all a lot simpler?

In fact, there is a really simple way to install HiveMQ on AWS. One that is much less involved than what I have described in this post. Just hop over to HiveMQ Cloud and create a dedicated, scalable, and reliable HiveMQ cluster fully configured and ready to go in a few minutes.
