Using HAProxy to Load Balance HiveMQ with the New Health API

by Markus Scully
9 min read

In a HiveMQ deployment handling thousands of connected devices, it is often vital to make sure incoming MQTT traffic is evenly distributed across the nodes in the cluster. This is often accomplished by placing the HiveMQ network behind a load balancer. Load balancers can often be configured to perform a health check to detect when a node is down and stop routing traffic to it until it comes online again. This is a significant advantage of this configuration.

With the release of HiveMQ 4.14 we are happy to announce the introduction of the Health API. When configured and enabled, this API exposes HTTP endpoints that can be used by load balancers for these health checks.

This blog post describes how the Health API can be used with the HAProxy load balancer.

The Health API

To use the Health API we must first enable it by adding the following section to our HiveMQ config.xml configuration file:

<health-api>
    <enabled>true</enabled>
    <listeners>
        <http>
            <bind-address>0.0.0.0</bind-address>
            <port>8889</port>
        </http>
    </listeners>
</health-api>

This will expose two new probe endpoints on port 8889:

  • /api/v1/health/liveness: The liveness probe will always return a status code of 200 if the broker is running,

  • /api/v1/health/readiness. The readiness probe will return a status code of 200 only when the broker is in an okay state and accepting incoming MQTT connections. We will only make use of the readiness probe in this example. For more information, please refer to our documentation on The Health API.

HAProxy

HAProxy is a simple and easy-to-install load balancer.

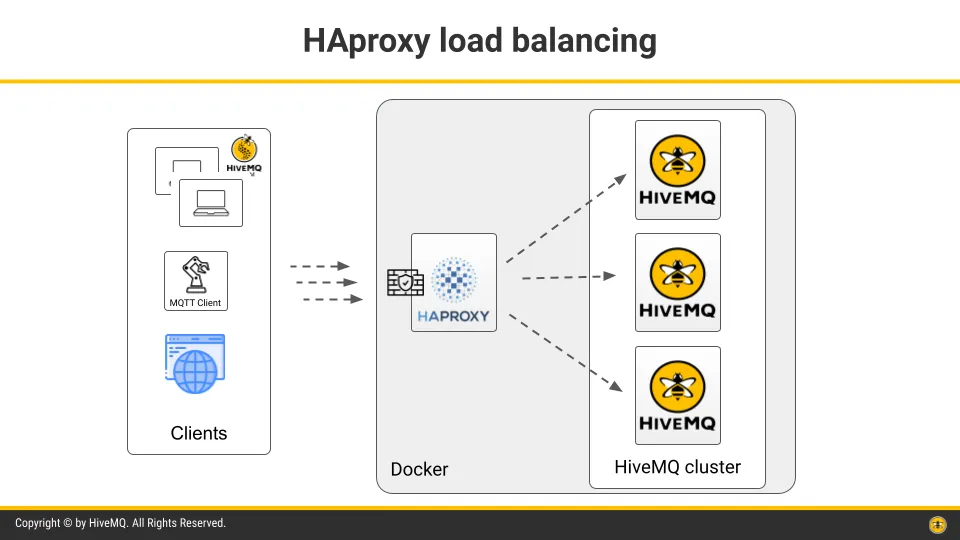

HAProxy distributes incoming MQTT connections to different nodes in the clusterHAProxy distributes incoming MQTT connections to different nodes in the cluster

To use it with our HiveMQ cluster, we can create the following HAProxy configuration file called haproxy.cfg:

global
  stats socket /var/run/api.sock user haproxy group haproxy mode 660 level admin expose-fd listeners
  log stdout format raw local0 info

defaults
    log global
    mode tcp
    option tcplog
    maxconn 1024000
    timeout connect 30000
    timeout client 600s
    timeout server 600s
    default-server init-addr last,libc,none

frontend stats
    mode http
    bind *:8404
    stats enable
    stats uri /stats
    stats refresh 10s
    stats admin if LOCALHOST

frontend health_frontend
   mode tcp
   option tcplog
   bind *:8889
   default_backend health_backend

backend health_backend
   mode http
   server HMQ1 HMQ-node1:8889
   server HMQ2 HMQ-node2:8889
   server HMQ3 HMQ-node3:8889

frontend mqtt_frontend
   mode tcp
   option tcplog
   bind *:1883
   default_backend mqtt_backend

backend mqtt_backend
    mode tcp
    stick-table type string len 32 size 100k expire 30m
    stick on req.payload(0,0),mqtt_field_value(connect,client_identifier)
    option httpchk
    http-check send meth GET uri /api/v1/health/readiness
    server HMQ1 HMQ-node1:1883 check port 8889
    server HMQ2 HMQ-node2:1883 check port 8889
    server HMQ3 HMQ-node3:1883 check port 8889

This will configure HAProxy to route all incoming MQTT traffic on port 1883 to one of three HiveMQ nodes in our cluster. We enable health checks for the nodes by adding check port 8889 after each server line in the backend mqtt_backend section. The lines option httpchk and http-check send meth GET uri /api/v1/health/readiness specify that the health check is performed by accessing our readiness probe URI. HAProxy will periodically send a request to this URI on each node. A response with a 2xx or 3xx HTTP status code indicates to HAProxy that the node is healthy, which the Health API conforms to.

All other status codes are considered unhealthy, which might mean the particular node is not yet operating. HAProxy will stop routing traffic to these unhealthy nodes until it becomes healthy again.

The stats frontend will allow us to see the current status of our network by visiting localhost:8404 in a browser.

Cluster Setup

We will use Docker Compose to run our three-node HiveMQ cluster on a local network behind HAProxy. First we will add the following section to our HiveMQ config.xml file:

<cluster>
    <enabled>true</enabled>
    <transport>
        <tcp>
            <bind-address>0.0.0.0</bind-address>
            <bind-port>7800</bind-port>
        </tcp>
    </transport>
    <discovery>
        <static>
            <node>
                <host>172.31.0.101</host>
                <port>7800</port>
            </node>
            <node>
                <host>172.31.0.102</host>
                <port>7800</port>
            </node>
            <node>
                <host>172.31.0.103</host>
                <port>7800</port>
            </node>
        </static>
    </discovery>
</cluster>

This will allow the HiveMQ nodes to discover each other and successfully form a cluster.

Next we will create a docker-compose.yml file for the Docker Compose setup. With it, we will need to ensure the following:

  • We will need three instances of the latest HiveMQ Docker image and one instance of the HAProxy Docker image running on the same internal network with all necessary ports exposed.

  • Because we have specified static IP addresses in the HiveMQ configuration, each node must be assigned its correct IP when running in Docker.

  • We need to mount volumes to provide the config.xml file to the HiveMQ Docker containers, and the haproxy.cfg file to the HAProxy container.

version: "3.3"
services:
  hmq-node1:
    image: hivemq/hivemq4
    networks:
      hiveMQ.net:
        ipv4_address: "172.31.0.101"
    volumes:
       - "./conf/:/opt/hivemq/conf"

  hmq-node2:
    image: hivemq/hivemq4
    networks:
      hiveMQ.net:
        ipv4_address: "172.31.0.102"
    volumes:
       - "./conf/:/opt/hivemq/conf"

  hmq-node3:
    image: hivemq/hivemq4
    networks:
      hiveMQ.net:
        ipv4_address: "172.31.0.103"
    volumes:
       - "./conf/:/opt/hivemq/conf"

  haproxy-lb:
    image: haproxytech/haproxy-alpine:2.6.6
    networks:
      - hiveMQ.net
    volumes:
       - "./haproxy/:/usr/local/etc/haproxy:ro"
    ports:
       - "1883:1883"
       - "8889:8889"
       - "8404:8404"
    depends_on:
       - hmq-node1
       - hmq-node2
       - hmq-node3

networks:
  hiveMQ.net:
    driver: bridge
    ipam:
     config:
       - subnet: 172.31.0.0/24
         gateway: 172.31.0.1

We will place our config.xml file in a directory called conf, and our haproxy.cfg file in a directory called haproxy. This allows us to mount these files as volumes and make them available to our Docker containers. Our directory structure should now look like this:

|- docker-compose.yml
|- conf/
   |- config.xml
|- haproxy/
   |- haproxy.cfg

We can now start our cluster by running the command docker-compose up in this directory.

Demonstration

To test the functionality of the Health API in our setup, we can kill one of our nodes and monitor its status with HAProxy. To find the container ID for a node in our cluster we can use docker container ls. The command docker container kill <CONTAINER_ID> will then kill this node. If we visit localhost:8404 in our browser we can see a list of all nodes visible to HAProxy. The dead one should now appear as down. Restart the node again with docker container start <CONTAINER_ID>, which will change its status back to running in the HAProxy stats overview.
